HGWD5-1.2-8B نوع الحزام مجفف مجفف الخضار والفواكه المستمر
تفاصيل المنتج:
| مكان المنشأ: | تشنغتشو,حنان,الصين |
|---|---|
| اسم العلامة التجارية: | هوافود |
| شهادة: | ايزو,م,اس جي اس |
| رقم الموديل: | HGWD5-1.2-8B |
قسط & شروط الشحن:
| يكتب | HGWD5-1.2-8B | |
| No.of Unit | 4 | |
| مقاس | 10*2*4م | |
| درجة حرارة (درجة مئوية) | 50-140درجه مئوية | |
| steam pressure | 0.2-0.8Mpa | |
| steam consumption(Kg/h) | 300-600كجم/ساعة | |
| قوة | 15كيلووات | |
| drying intensity(Kg.H2O/m².h) | 6-30. | |
فيديو
حدود
| يكتب | HGWD5-1.2-8B | HGWD5-1.2-10B | HGWD5-1.6-8B | HGWD5-1.6-10B | HGWD5-2.0-8B | HGWD5-2.0-10B | |
| No.of Unit | 4 | 7 | 4 | 7 | 4 | 7 | |
| مقاس | 10*2*4م | 16*2*4م | 10*2.4*4م | 16*2.4*4م | 10*3*4م | 16*3*4م | |
| درجة حرارة (درجة مئوية) | 50-140درجه مئوية | ||||||
| steam pressure | 0.2-0.8Mpa | ||||||
| steam consumption(Kg/h) | 300-600كجم/ساعة | 500-1500كجم/ساعة | 300-600كجم/ساعة | 500-1500كجم/ساعة | 500-800كجم/ساعة | 500-2000كجم/ساعة | |
| قوة | 15كيلووات | 30كيلووات | 20كيلووات | 35كيلووات | 20كيلووات | 35كيلووات | |
| drying intensity(Kg.H2O/m².h) | 6-30. | ||||||
طلب

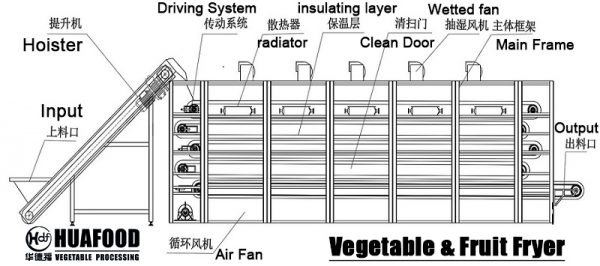

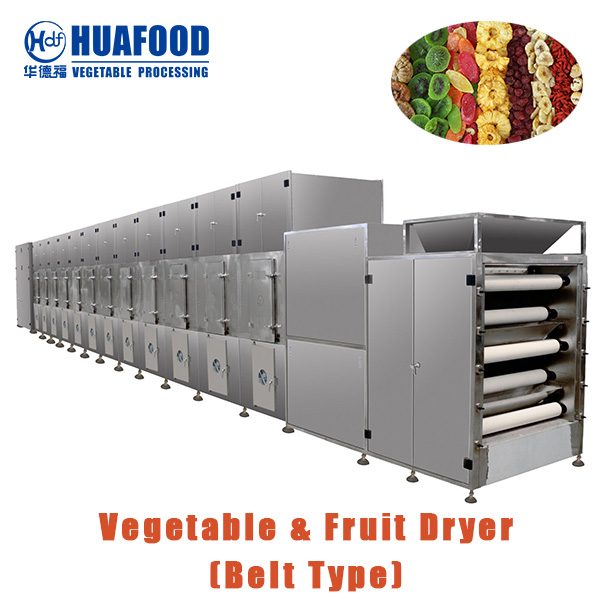

The mesh belt hot air dryer is a continuously operated dryer developed from a box dryer. The classification of the belt dryer can be divided into counter-flow exhaust type, co-current exhaust type and unidirectional exhaust type according to the exhaust mode. According to the number of layers of the conveyor belt, it can be divided into single-layer belt dryer, multi-layer belt dryer, and several single-layer belt dryers are connected in series to become a multi-stage belt dryer.
نطاق التطبيق:
The belt dryer is a commonly used continuous drying equipment, which can be widely used in chemical, طعام, pharmaceutical, building materials, electronics and other industries. It is particularly suitable for the drying of sheet, يجرد, and granular materials with good ventilation. Types and paste-like materials can also be dried after being formed by a granulator or extruding mechanism.
Applicable materials:
Seaweed, dehydrated vegetables, dates, granular and flake food, granular feed, monosodium glutamate, chicken essence, coconut paste, organic pigments, synthetic rubber, acrylic fiber, المستحضرات الصيدلانية, المواد الطبية, small wooden products, plastic products, electronic components aging and curing.
سمات
1. Strong stability: The core components are independently developed and manufactured, and continuous operation is stable and reliable.
2. Strict safety standards: anti-airborne protection, electrical standards (national standard)
3. Intelligent: highly embedded control system, one-key start, data parameters can be transmitted online and wirelessly.
4. The use of advanced equipment processing and manufacturing: fine production technology.
