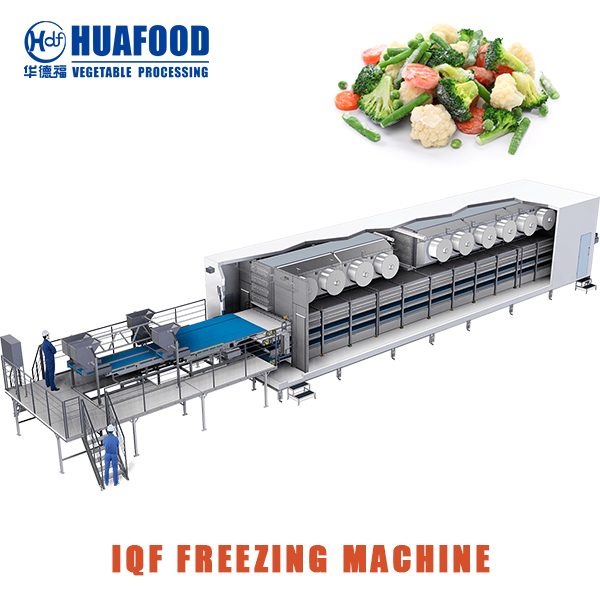

HSD-1000 IQF Fluidized quick freezing machine for french fries
| Luogo d'origine: | Zhengzhou,Henan,Cina |
|---|---|
| Marchio: | HUAFOOD |
| Certificazione: | ISO,CE,SGS |
| Numero di modello: | HSD-1000 |
| Tipo | HSD-500 |
| Capacità(kg/ora) | 500kg/ora |
| Refrigeration Capacity | 90kW/h |
| Freezer Room Size | 4.5*3.8*2.9M |
| Exterior Size | 6.1*3.8*2.9M |
| Energia | 19.5chilowatt |
| Belt width | 1100mm |
| In Feed Temperature( ℃ ) | +15℃ |
| Out Feed Temperature( ℃ ) | -18℃ |
| Inner Circulation Temperature(℃) | -35℃ |
| Frozen Time(min) | 6-30min |
| Refrigerant | R717/R404A/R22 |
video
Parametri
| Tipo | HSD-500 | HSD-1000 | HSD1500 | HSD2000 | HSD3000 |
| Capacità(kg/ora) | 500kg/ora | 1000kg/h | 1500kg/h | 2000kg/h | 3000kg/h |
| Refrigeration Capacity | 90kW/h | 170kW/h | 255kW/h | 340kW/h | 340kW/h |
| Freezer Room Size | 4.5*3.8*2.9M | 8.5*3.8*2.9M | 12.1*3.8*2.9M | 16*3.8*2.9M | 19.5*4*2.9M |
| Exterior Size | 6.1*3.8*2.9M | 10.1*3.8*2.9M | 13.7*3.8*2.9M | 17.6*3.8*2.9M | 21.1*4*2.9M |
| Energia | 19.5chilowatt | 37.5chilowatt | 54.7chilowatt | 480chilowatt | 480chilowatt |
| Belt width | 1100mm | 1100mm | 1100mm | 1200mm | 1200mm |
| In Feed Temperature( ℃ ) | +15℃ | +15℃ | +15℃ | +15℃ | +15℃ |
| Out Feed Temperature( ℃ ) | -18℃ | -18℃ | -18℃ | -18℃ | -18℃ |
| Inner Circulation Temperature(℃) | -35℃ | -35℃ | -35℃ | -35℃ | -35℃ |
| Frozen Time(min) | 6-30min | 6-30min | 6-30min | 6-30min | 6-30min |
| Refrigerant | R717/R404A/R22 | R717/R404A/R22 | R717/R404A/R22 | R717/R404A/R22 | R717/R404A/R22 |
Applicazione
IQF Fluidized quick freezer is suitable for meat&poultry;frutti di mare; bakery;prepared food; ice cream and so on. The area is small, the efficiency is high, the output is 500 – 3000kg/h
Freezer Body Material:
Duplex stainless steel polyurethane insulation board density or 40 kg/m3, the thickness of 150mm, 304 stainless steel outer plate thickness more than 0.8mm
Main Electric Brand:
Schneider or another
Internal Structure: All made of 304 Stainless Steel
Evaporator:
Effective from large aluminum finned tube set, stainless steel panel stent.
Fan and Motor:
Aluminum alloy stainless steel duct fan low noise and
waterproof electric power consumption
Caratteristiche
1. High freezing efficiency and many kinds of frozen products.
2. Realize the continuous quick freezing of single food.
3. Using mechanical air cooling device, basso consumo energetico.
4. High-pressure fan and mesh belt adopt frequency conversion adjustment and time indicator to realize precise processing.
5. Continuous cleaning and drying devices are adopted for sanitation.
6. Fast freezing at -32 ℃.
7. There are many kinds of frozen products. In addition to the continuous freezing of fruit and vegetable foods, it can also be applied to seafood, such as scallops, shrimps, fish fillets, ecc., for continuous rapid freezing without adding facilities and changing devices.
8. Long frosting interval time to ensure the continuity of production.
