Carrot processing line vegetable washing and drying machine
Dettagli del prodotto:
| Luogo d'origine: | Henan Huafood, Cina |
|---|---|
| Marchio: | FUFOOD |
| Certificazione: | ISO,CE,SGS |
| Numero di modello: | HDF100 |
Parametri
The production line of the carrot cleaning line uses the roller cleaner to clean the Carrots with soil, and then uses the wool roller cleaner to clean the carrots for the second time. After cleaning, the carrots are cleaned for the second time to ensure the carrot cleaning rate of 100%, safety and health,Applicable to factories, ristoranti, eccetera
Carrot processing equipment
Carrot processing equipment
| Total output of carrot washing line 1000 kg / H | ||
| Articolo | Energia | Misurare |
| hoisting machine | 0.75kw/380v/50Hz | 2000*1000*1900mm |
| Drum cleaning machine | 3.75kw380v/50Hz | 3000*1100*2200mm |
| Hair roller cleaning machine |
2.0kw/380v/50Hz | 2000*1000*1300mm |
| sorting machine | 0.75kw/380v/50Hz | 3000*900*900mm |
| hoisting machine | 0.75kw/380v/50Hz | 2000*800*1600mm |
| vibrating machine | 1.5kw/380v/50Hz | 1500*1000*1300mm |
| air drying machine | 15kw/380v/50Hz | 4000*1200*1400mm |
| Note: These parameters are conventional and can be customized according to customer needs | ||
video
Principio di funzionamento
program

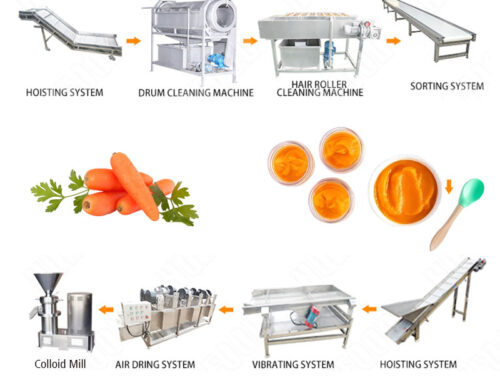

- The first step is to put the carrots to be washed in a bubble washing machine;
- The second step is to use the conveyor belt to transfer the washed carrots to the drum washing machine for secondary washing to ensure that the vegetables are 100% clean;
- The third step is to remove some of the water in the carrots through a vibrating screen;
- The fourth step is to drain all the water from the carrots on the shaker into the air dryer;
- The fifth step is to cut the washed carrots as needed
Finally, according to your needs, you can cut, dry, freeze, pacchetto, eccetera.
Talenti
cleaned in cleaning groove is covered by water, attached to the surface of quite a number of large pieces of soil loss, the conveyor belt into the drum washing machine inlet, cleaning material into the hopper into the rotating drum, the drum rotation in the pool, use of its own gravity separation of cleaning as propulsion, to realize automatic cleaning material.The cleaning material moves forward along the roller wall. During the movement, the cleaning material is constantly washed by water, the friction between cleaning material, the brushing between turning and the friction between cleaning material and the roller wall, and the cleaning process of cleaning material surface is completed under the joint action.
